| Type | Fixture Clamp | Total Throw | .030″ |
| Thread Size | #8-32 | Holding Force | 205 lbs |
| Overall Width | 5/16″ | Standard Pack | 10 |
| Model No | 10202 | Style | Inch |
| Hex Key Size | 5/64″ | Thread Length | 0.350″ |
| Thickness | .110″ | Width Across Flats | 0.312″ |
Product Features

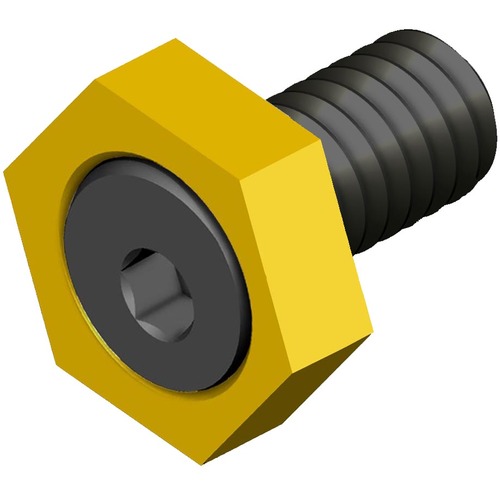

| Remarks | •The Fixture Clamp is made up of two simple components: a hardened steel socket cap screw with an offset head & a hexagonal washer. •Small size allows more parts per load. •Simple design keeps cost low. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
4.00000
Package Width
5.12500
Package Height
.26000
Package Weight
0.05
